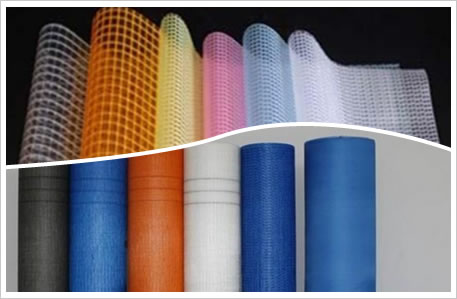

Feiyade supplies and exports Fiberglass mesh with covering PVC of various colors. This material is used to reinforce the cement in various building.
The dimension of the mesh roll is: 45..75 inch x 20,000 ft. and 8 x 4 , 0.014, clear 2.
Please find below technical specifications for Fiberglass Mesh Screen with PVC covering.
Designation: Mesh, fiberglass mesh, fiber mesh
Description and use: This is a fiberglass mesh with PVC covering. The mesh serves as the primary contributor to the flexural strength of the cement panel.
Pyramid style (max 3 rolls per pallet) secured with plastic straps and wooden blocks.
The platform should be the same width as the roll received in closed vehicles (van).
Handling and storage requirements:
Be careful when moving pallets with a forklift to prevent any damage;
Store in a dry;
Protect from sunlight.
|Glass yarn type||E-glass G 75|
|Type of coating||PVC plastisol|
|Coating mass fraction (DPU) (%)||Min 18 +/- 30|
|Tensile strength (initial)||ASTM-D 5035-
|Warp and fill: 110 +/- 10 lbf/in|
|Tensile strength after aging lime
|Unifix Method||Minimum 70% retention for the mesh|
|Count as UV||Unifix Method||Max 200|
|Counts per inch||Warp: 8 +/- 0.3 Fill: 7.5 +/- 0.3|
|Weight (oz./yd2)||2.0 to 4.0|
|Width (inch)||Objectives: 30.25, 34.25, 46.25/
Tolerances: -0, +1/8”
|Diameter of the roll (*)||33 +/-2”|
|Length of the roll (linear yard)||5000 +/- 100. Can accept smaller rolls,
reviewing case by case basis and with
the authorization of the Plant Manager
|Weight of the roll (lbs)||Max 1800|
|Unions||Hot or warm link, identifying the union
with a mark on both sides of the roll with
a maximum of 3 connections per roll
|Start mark||Identified with a mark both sides of the
|Unwinding conditions||Tension should be kept equal to the
entire width, unroll without undulations,
should not present agglomeration when
|type of nucleus||Fiber tube, 3.0 "diam. Int the same width
as the mesh or 0.25" wider, inside the
roll smooth and rounded ends of the
tube must not be damaged or beaten.
The mesh should not be glued or bonded
to the core
|Information / Traceability||Each roll must carry 2 identical and
removable labels with the following
- roll unique number (or batch)
- style or description of the type
